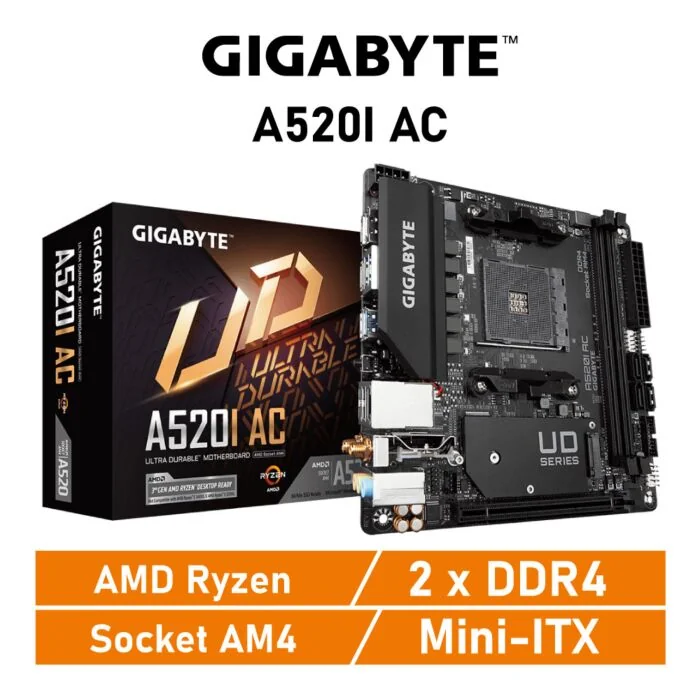

GIGABYTE A520I AC AM4 AMD A520 Mini-ITX AMD Motherboard

GIGABYTE

GA-A520I-AC

AM4

AMD A520

Ryzen Series

Mini-ITX

AMD Ryzen Series CPUs (Renoir, Cezanne, Matisse and Vermeer)

AMD A520

2 x DDR4 DIMM Slots

Dual Channel DDR4 Memory Technology

AMD Ryzen Support DDR4-5300 (OC)

64GB Maximum Support Capacity

DisplayPort 1.4 and 2 x HDMI 2.1

*Requires AMD CPU with Integrated GPU

Realtek ALC897 7.1 CH HD Audio

1 x Realtek RTL8118 Gigabit LAN 10/100/1000 Mb/s

Intel Wireless-AC 3168 + Bluetooth 4.2

AMD Ryzen series CPUs (Matisse and Vermeer)
1 x PCI Express 3.0 x16 Slot (PCIEX16)

AMD Ryzen series CPUs with Radeon Graphics (Renoir and Cezanne)
1 x PCI Express 3.0 x16 Slot (PCIEX16)

N/A

4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0 / 1 / 10

1 x PCIe 3.0 x4 M.2 Socket (2260/2280)

1 x 24-Pin ATX Main Power Connector

1 x 8-Pin ATX 12V Power Connector

1 x CPU Fan Header

2 x System Fan Headers

1 x Addressable LED Strip Header

1 x RGB LED Strip Header

1 x M.2 Socket 3 Connector

4 x SATA 6Gb/s Connectors

1 x Front Panel Header

1 x Front Panel Audio Header

1 x Speaker Header

1 x USB 3.2 Gen1 Header

1 x USB 2.0 Header

1 x Trusted Platform Module (TPM) Header (2x6 Pin, For The GC-TPM2.0_S Module Only)

1 x Serial Port Header

1 x Clear CMOS Jumper

1 x DisplayPort Port

1 x HDMI Port

1 x DVI-D Port

1 x LAN (RJ-45) Port

1 x PS/2 Keyboard / Mouse Combo Port

2 x SMA Antenna Connectors (1T1R)

4 x USB 3.2 Gen1 Type-A Ports

2 x USB 2.0 Type-A Ports

3 x Audio Jacks

GIGABYTE Cooling
3 Fan Headers
5 Temperature Sensors
All Fan Pin Headers Upgraded to Hybrid Fan Headers
Fan Stop

GIGABYTE Audio
High-End Audio Capacitors

GIGABYTE Quality and Protection
Direct 6 Phase Digital Power Design with 55A DrMOS
Digital PWM Controller
All-Solid Capacitors
Solid Pin Power Connectors
Double Locking Bracket
Anti-Sulfur Design
Q-Flash Plus BIOS
ESD and Surge Protection

GIGABYTE RGB Fusion 2.0
16.8 Million Colours
12 LED Effects
1 x RGB LED Strip Header
1 x ARGB LED Strip Header

3 Years

Standard
