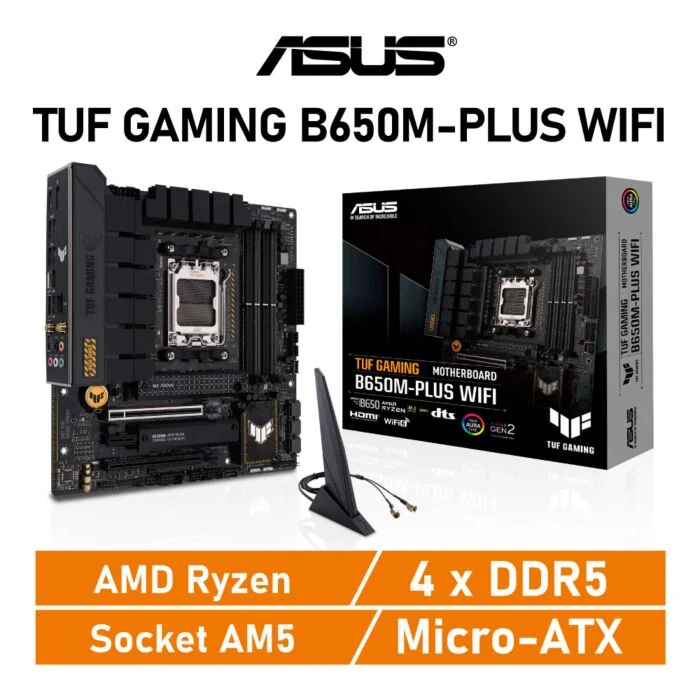

ASUS TUF GAMING B650M-PLUS WIFI AM5 AMD B650 Micro-ATX AMD Motherboard

ASUS

AM5

AMD B650

Raphael

ATX

AMD Ryzen Series CPUs (Raphael)

AMD B650

4 x DDR5 DIMM Slots

Dual Channel DDR5 Memory Technology

AMD Ryzen Support DDR5-6400(OC)*
*Memory specifications may vary depending on CPU

128GB Maximum Support Capacity

DisplayPort 1.4 + HDMI 2.1

*Requires AMD CPU with Integrated GPU

Realtek 7.1 HD Audio

1 x Realtek RTL8125 2.5G LAN 100/1000/2500 Mb/s

Wi-Fi 6 AX + Bluetooth 5.2

2 x PCI Express 4.0 x16 Slots (PCIEX16_1 / PCIEX16_2*)
*Supports x4 mode

2 x PCI Express 4.0 x1 Slots (PCIEX1_1 / PCIEX1_2)

**Please view PCIe bifurcation table in the manual

N/A

4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0 / 1 / 10

1 x PCIe 5.0 x4 M.2 Socket (2242/2260/2280)

1 x PCIe 4.0 x4 M.2 Socket (2242/2260/2280)

1 x PCIe 4.0 x4 M.2 Socket (2242/2260/2280/22110)

1 x 24-Pin ATX Main Power Connector

1 x 8-Pin ATX 12V Power Connector

1 x 4-Pin ATX 12V Power Connector

1 x CPU Fan Header

1 x CPU OPT Fan Header

1 x Water Cooling Pump Header

4 x System Fan Headers

1 x AURA RGB Header

3 x Addressable Gen2 Headers

3 x M.2 Socket 3 Connectors

4 x SATA 6Gb/s Connectors

1 x Front Panel Header

1 x Front Panel Audio Header

1 x Thunderbolt Header

1 x USB Type-C Header, With USB 3.2 Gen1 Support

1 x USB 3.2 Gen1 Header

2 x USB 2.0 Headers

1 x COM Port Connector

1 x Clear CMOS Header

1 x DisplayPort Port

1 x HDMI Port

1 x LAN (RJ-45) Port

2 x SMA Antenna Connectors (2T2R)

1 x USB 3.2 Gen2x2 Type-C Port

1 x USB 3.2 Gen2 Type-C Port

2 x USB 3.2 Gen2 Type-A Ports

4 x USB 2.0 Type-A Ports

5 x Audio Jacks

1 x BIOS FlashBack Button

ASUS TUF Cooling
6 DC / PWM Fan Headers
1 Water Pump Header
4 Internal Temperature Sensors
Smart Fan Protection
Enlarged VRM Heatsink
Chipset Heatsink
2 M.2 Heatsinks

ASUS TUF Audio
Audio Shielding
Dedicated PCB Layers
Premium Audio Capacitors
Unique De-Pop Circuit
DTS Audio Processing

ASUS TUF Quality and Protection
12+2 Teamed Power Stages
DIGI+ VRM Power Design
5K Black Metallic Capacitors
Military-Grade TUF Chokes
Integrated I/O Shield
ProCool Power Connectors
DRAM Overcurrent Protection
Overvoltage Protection
OptiMem II
ESD Guards
TUF LANGuard
M.2 Q-Latch
SafeSlot Core+
SafeDIMM
Q-DIMM
Q-Slot
Q-LED

ASUS AURA RGB
16.8 Million Colours
1 x AURA RGB Header
3 x Addressable Gen2 Headers

3 Years

Standard
